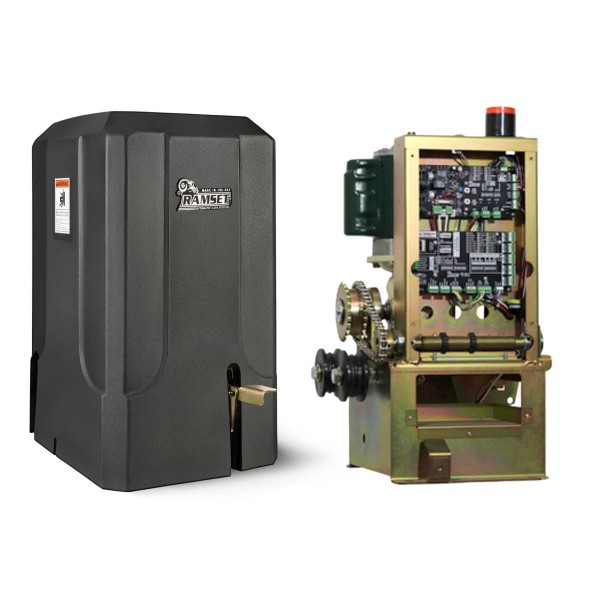

Ramset 1000 DC Slide Gate Opener (UL Rated, 3000 lbs, 45 ft) - 800-98-03

The Ramset RAM 1000 DC features a continuous duty, direct drive motor; this powerful and reliable workhorse handles slide gates up to 45 ft and 3000 lbs. The gate opener features a 24 VDC brushless DC motor. The RAM-1000 is equipped with a gearbox lubricated in an oil bath for smooth and whisper-quiet operation. Another convenience this gate opener offers is its foot release pedal, which allows for easy manual operation of the gate if there is a power outage. With the RAM 1000 DC battery backup system, when the battery reaches 90% of its life, it switches to Ultra Low Battery Mode to prevent damage to the gate opener. The opener has a right/left switch to make it easy to change the direction of the installation. The RAM 1000 DC is designed to last with its high-impact resistant charcoal gray polyethylene plastic cover and the 1/4" gold-plated steel chassis, which reduces corrosion.

Features:

• Reliable, Durable Swing Gate Opener
• Easy To Set Up With Slow Learn Mode
• High-Traffic Commercial/Industrial Opener
• Left or Right Switch
• 4 Levels: Soft Start and Slow Stop
• Foot Pedal Emergency Break
• Advanced Battery Backup System
• Mechanical Limit System
• Made In The USA
• 5 Year Limited Warranty

Specifications:

• Max Gate Length: 45'
• Max Gate Weight: 3,000 lbs
• Variable Cycle Speed: 12"/10"/8"/6" Per Second
• Brushless DC Motor: 24 VDC, 25 AMPS
• Power: 115 VAC Single-Phase
• Accessory Power: 24VDC
• Operating Temperature: 10 Degrees F - 160 Degrees F

The Ram-1000-DC comes with 2 boxes of 10-foot #40 chain. You can purchase an additional 10 feet of #40 chain here: Part # 800-52-00.
