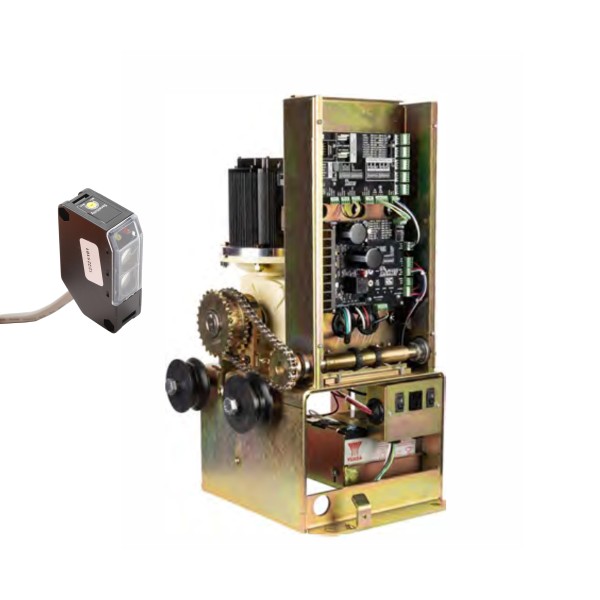

Ramset RAM-1000 DC Brushless Heavy-Duty Slide Gate Operator with Photoeyes - 800-99-03

Details

Ramset RAM-1000 DC Brushless Heavy-Duty Slide Gate Operator with Photoeyes - 800-99-03

The Ramset RAM-1000 DC Brushless Heavy-Duty Slide Gate Operator with Photoeyes is engineered for larger commercial gates up to 3,000 pounds and 45 feet in length. The brushless 24VDC motor provides reliable output, supported by soft start and slow stop for precise gate control. Included photoeyes ensure UL325 compliance while enhancing entryway protection. With a foot pedal release and backup power capability, it is built to handle demanding traffic environments safely and efficiently.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Features

• Slow Stop & Soft Start for smooth, quiet gate operation
• Battery Backup System keeps gates operational during power outages
• Emergency Foot Pedal Release for manual gate access in emergencies
• Easy Installation with EP Learn Mode for quick photoeye setup
• Left/Right Switch for flexible installation direction
• Adjustable Close Delay to fit unique site requirements
• Fail Safe/Secure mode allows gate to default open or closed if power remains unavailable

Specifications

• Class: Commercial/ Industrial
• Max Gate Weight: 3,000 lbs
• Max Gate Length: 45'
• Motor: Brushless 24 VDC, 25 AMPS
• Gate Speed: 12" per Second
• VAC: 115-Single phase
• Battery Backup System: (2) 7Ah 12VDC Batteries
• W x L x H: 16.5" x 14.5" x 22"
• Includes Photoeye Pair
