Ramset 100 AC Slide Gate Opener with Photo Eye (UL Rated, 1000 lbs, 35 ft) - 800-97-02

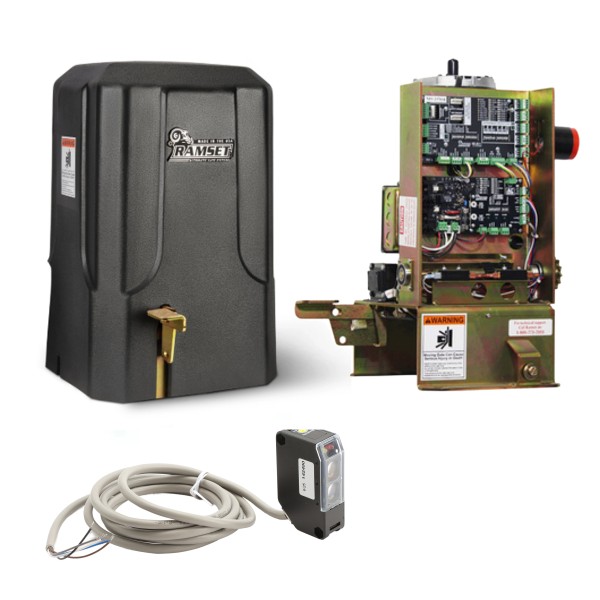

The Ramset RAM-100 AC Commercial Slide Gate Operator with photo eyes provides dependable automation for mid-sized commercial gates. Designed for gates up to 1,000 pounds and 35 feet, it balances power with integrated safety measures. This package includes a photo eye pair, ensuring UL325 compliance while enhancing site protection.
Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.
Features:
- ETL Listed and UL 325 Compliant with required external entrapment protection devices
- Emergency Foot Pedal Release for manual operation during power loss or emergencies
- Easy Installation with EP Learn Mode for quick photo eye setup
- Left/Right Switch for flexible installation direction
- Adjustable Close Delay to suit unique site requirements
- One Pass system for immediate closure after entry
- Smart Home Compatible via relay connection on control board
Specifications:
- Class: Residential/ Commercial
- Max Gate Weight: 1,000 lbs
- Max Gate Length: 35'
- Motor: 1/2 Hp, 115 VAC, 4.5 AMPS
- Cycles: Continuous
- Gate Speed: 12" per Second
- VAC: 115-Single phase
- W x L x H: 15" X 14.5" X 22"
- Emergency Release: Foot Pedal
- Includes 2 Pairs of Photo Eyes
| SKU | 800-97-02 |
|---|---|
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
110/115/120 AC (60 Hz, 1 Phase) |
| Application | Commercial |
| Cycles Per Hour | Continuous Duty |
| Opening Speed | 1 Ft. / Second |
| Maximum Gate Size | 35 ft. |
| Maximum Gate Weight | 1000 lbs. |
| Power Failure Release | Foot Pedal Release |
| UL Class | I, II, III, IV |
| Motor | 115VAC Brushless (4.5 Amps) |
| Horsepower | 1/2 HP |
| Includes Photoeye | Yes |
| Manufacturer | Ramset Automatic Gate Systems, Inc. |
| Specifications Sheet | Download PDF file |
| Data Sheet | Download PDF file |
| Manual | Download PDF file |
| Warranty | 10 Year Residential, 7 Year Commercial, 3 Year Control Boards |
