Ramset All-Secure Electro Mechanical Rail Drive Continuous Duty Automatic Slide Gate Opener (UL Rated, For Gates Up To 8000 lbs) (230V)
Details
Ramset All-Secure Electro Mechanical Rail Drive Continuous Duty Automatic Slide Gate Opener (UL Rated, For Gates Up To 8000 lbs) (230V)

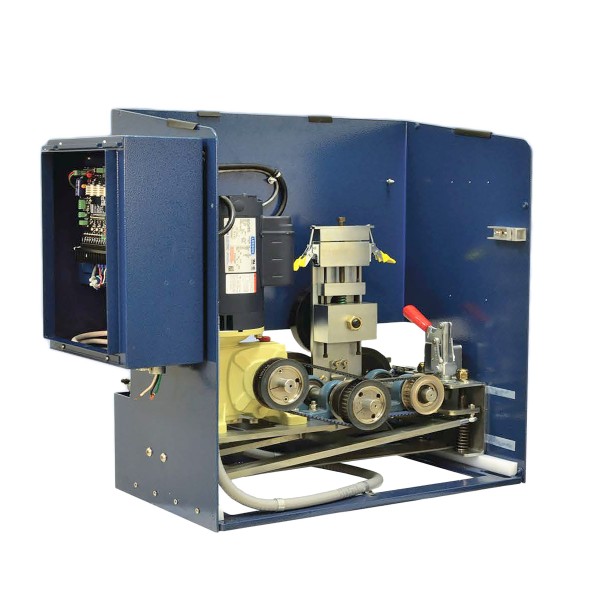

The All-Secure by Ramset is a heavy-duty, variable-speed, rail-drive slide gate operator designed for smooth, secure, and reliable operation of extremely large, heavy gates in industrial and commercial applications. It features a 1 HP - 230 VAC motor with variable gearbox ratios, making it capable of moving gates as quickly as 36 inches per second or weighing up to 8,000 lbs. The electro-mechanical rail drive adds security by eliminating the need for a chain, while the rail sits above the drive wheels and limit switches, protecting them from inclement weather and debris that can cause operational problems.
Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.
The All-Secure Slide Gate Operator uses a unique spring-mounted suspension system that turns your handyman installation job into a professional one because the spring-mounted rail drive chassis will move up and down as well as side to side, ultimately preventing damage to the wheels or the operator itself due to misalignment. Additionally, the wheels are constructed of long-lasting polyurethane material and can easily be changed without having to take the motor apart. If you are looking for a commercial or industrial rail-driven slide gate operator that will last for years requiring minimal maintenance, the All-Secure by Ramset is exactly what you need.
**Rail Not Provided With Operator. We suggest purchasing locally in order to prevent possible damage from shipping as well as expensive transportation costs.
Ramset All-Secure Features:
- Environmentally Friendly and Made In The USA
- Electro-Mechanically Rail Driven Slide Gate Operator
- Can Be Fitted To Almost Any Gate Installation
- Works With Standard Aluminum or Steel L Channel Rails, No Expensive Rails Needed
- 230 VAC 1 HP Motor With Slow-Start and Soft-Stop
- Variable Speeds Available Depending On Gearbox Ratio (1 - 6 Feet Per Second
- Length Of Gate Does Not Matter - Can Move Gates Up To 8,000 lbs.
- Spring Mounted Suspension Makes Installation Quick and Easy
- Weather and Rodent-Proof Circuit Board Housing
- Carbon Fiber Belt Construction Means No Stretching or Adjusting
- Polyurethane Wheels Provide Long-Lasting Lifetime Use
- Intelligate control board Packs More Features and Settings Than Any Other Control Board On The Market
Ramset All-Secure Specifications:
- Max Gate Length: No Limit
- Max Gate Weight: 8,000 lbs
- Gate Travel Speed: 1 - 6 Feet Per Second
- Application: Commerical/Industrial
- Duty Cycle: Continuous Duty
- Motor: 1 HP, 230 VAC
- Control Box Dimensions: 12" L x 12" W x 15" H
- Overall Dimensions: 26 1/4" L x 16 1/2" W x 29" H
Ramset All-Secure Specifications
| SKU | ALL-SECURE-230V |
|---|---|
Input Voltage
Need to know the difference between voltages? Check out our guide!
Learn More
|
220/230/240 AC (60 Hz, 1 Phase) |
| Application | Industrial |
| Cycles Per Hour | Continuous Duty |
| Opening Speed | 1-6 Ft. / Second |
| Maximum Gate Size | No Maximum Length |
| Maximum Gate Weight | 8000 lbs. |
| Power Failure Release | Foot Pedal Release |
| UL Class | I, II, III, IV |
| Motor | 24VDC Brushless (25 Amps) |
| Horsepower | 1 HP |
| Manufacturer | Ramset Automatic Gate Systems, Inc. |
| Specifications Sheet | Download PDF file |
| Warranty | 10 Year Residential, 7 Year Commercial, 3 Year Control Boards |
