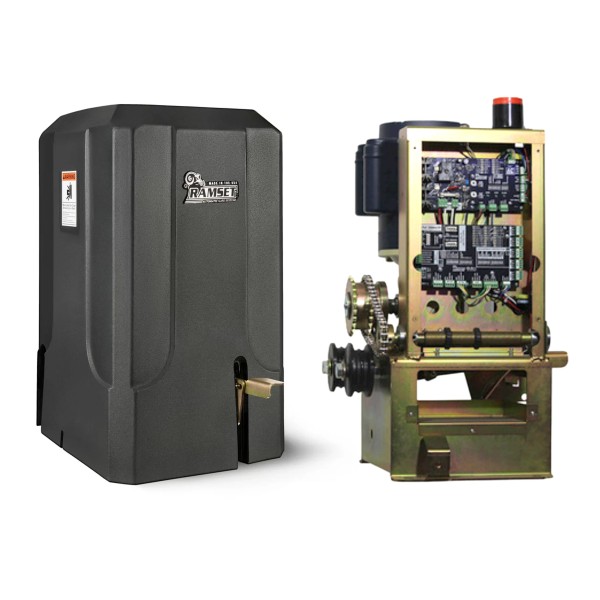

Ramset RAM 5500 DC Brushless Industrial Automatic Slide Gate Opener (For Gates Up to 45 ft. or 4000 lbs.) - 800-98-04

Ramset RAM 5500 DC Brushless Industrial Automatic Slide Gate Opener is a commercial or industrial gate opener designed for gates up to 45 ft or 4000 lbs and integrated with the Ramset "Intelligate" Control Board.
Part Number: 800-98-04
$2,428.07 each
$2,428.07 each
OR

Details

Ramset RAM 5500 DC Brushless Industrial Automatic Slide Gate Opener (For Gates Up to 45 ft. or 4000 lbs.) - 800-98-04

The Ramset 5500-DC is a commercial and industrial high-traffic slide gate operator designed to handle heavy-duty operations efficiently. It's equipped with features like the Ramset "Intelligate" Control Board, which ensures advanced control and safety measures, including an electronic reversing device that stops and reverses the gate upon detecting an obstacle. This model is robust, built to sustain the demands of high-traffic environments such as industrial sites and government facilities. Its continuous-duty motors are tailored to operate under various gate weights and sizes, ensuring durability and reliable performance over time.

Features

  • Application: Commerical/Industrial
  • Soft Start, Slow Stop
  • Left or Right Installation
  • One Pass and Delay Closing Options
  • EP Learning
  • Fail Safe/Fail Secure Modes
  • Double Board System
  • Battery Backup System
  • Power Failure Options: Foot Pedal Release and Optional Battery Backup
  • Finish: 1/4" Steel, Gold Zinc Plated
  • UL Class: I, II, III, IV
  • Warranty: 10 Year Residential, 7 Year Commercial, 3 Year Control Boards

Specifications

  • Maximum Gate Weight: 4000 lbs.
  • Maximum Gate Length: 45 ft.
  • Opening Speed: 1 Ft. / Second
  • Voltage: 110/115/120 AC (60 Hz, 1 Phase)
  • Horsepower: 3/4 HP or 1 HP
  • Cycle Rating: Continuous
  • Motor: 24VDC Brushless (25 amps)
  • Oprating Temperature Range: -10 Degrees F to 160 Degrees F

Specifications

Prefer to Call? (888) 378-1105

Questions about part number 800-98-04?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 800-98-04
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Motor 24VDC Brushless (25 amps)
Power Failure Release Foot Pedal Release, Optional Battery Backup
UL Class I, II, III, IV
Opening Speed 1 Ft. / Second
Horsepower 3/4 HP or 1 HP
Application Commercial, Industrial
Maximum Gate Size 45 ft.
Maximum Gate Weight 4000 lbs.
Cycles Per Hour Continuous Duty
Warranty 10 Year Residential, 7 Year Commercial, 3 Year Control Boards
