Ramset RAM-1000 AC Heavy-Duty Slide Gate Operator - 800-96-03

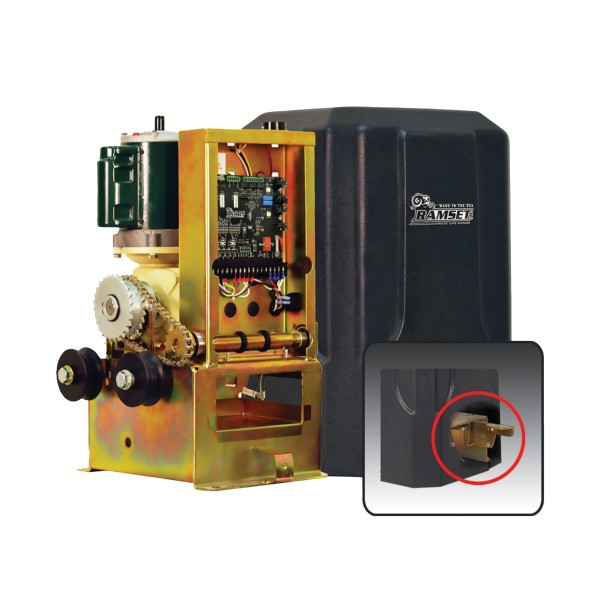

The Ramset RAM-1000 AC Heavy-Duty Slide Gate Operator is designed for industrial and commercial gates that demand higher strength. It manages gates weighing up to 1,500 pounds and stretching up to 45 feet in length. Safety and usability are central to its design, with UL325 compliance, an emergency foot pedal release, and quick EP Learn Mode for photo eye integration. This operator ensures efficient movement and long-term reliability, making it a strong choice for demanding entryways.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Please Note: To Comply With UL325 Standards, An External Entrapment Device Is Required For This Swing Gate Operator To Function. The Safety Reflective Photo Eye w/ Hood Kit (33ft) RAMSET-PHOTO-EYE Is Recommended.

Features

• ETL Listed and UL 325 Compliant with required external entrapment protection devices
• Emergency Foot Pedal Release for manual operation during power loss or emergencies
• Easy Installation with EP Learn Mode for quick photoeye setup
• Left/Right Switch for flexible installation direction
• Adjustable Close Delay to suit unique site requirements
• One Pass system for immediate closure after entry
• Smart Home Compatible via relay connection on control board

Specifications

• Class: Industrial/ Commercial
• Max Gate Weight: 1,500 lbs
• Max Gate Length: 45'
• Motor: 1/2 Hp, 115 VAC, 4.5 AMPS
• Cycles: Continuous
• Gate Speed: 12" per Second
• VAC: 115-Single phase
• W x L x H: 16.5" X 14.5" X 22"
• Emergency Release: Foot Pedal
