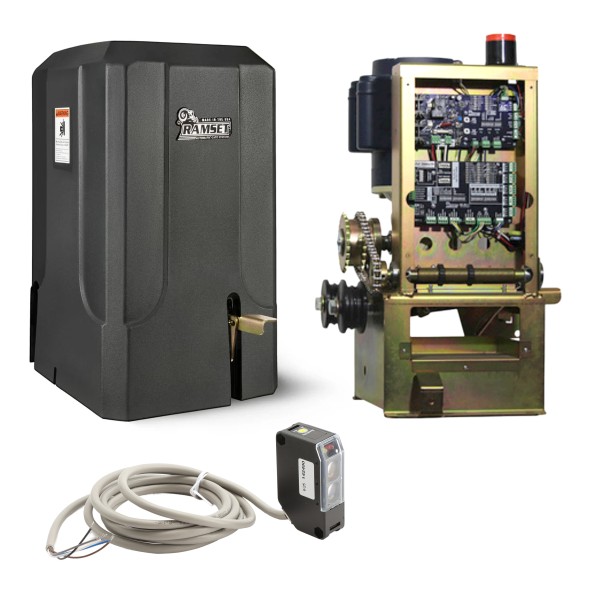

Ramset RAM-5500 DC Brushless Industrial Slide Gate Operator with Photoeyes - 800-99-04

Details

Ramset RAM-5500 DC Brushless Industrial Slide Gate Operator with Photoeyes - 800-99-04

The Ramset RAM-5500 DC Brushless Industrial Slide Gate Operator with Photoeyes is a high-capacity system for large commercial and industrial entrances. With the ability to move gates weighing up to 4,000 pounds and 45 feet long, it is designed to deliver lasting performance. Photoeyes are included to meet UL325 standards, and features such as EP Learn Mode and adjustable delay settings allow for straightforward setup. A 24VDC brushless motor, emergency release, and built-in battery backup give this operator the reliability needed for critical access points.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Features

• Slow Stop & Soft Start for smooth, quiet gate operation
• Battery Backup System keeps gates operational during power outages
• Emergency Foot Pedal Release for manual gate access in emergencies
• Easy Installation with EP Learn Mode for quick photoeye setup
• Left/Right Switch for flexible installation direction
• Adjustable Close Delay to fit unique site requirements
• Fail Safe/Secure mode allows gate to default open or closed if power remains unavailable

Specifications

• Class: Commercial/ Industrial
• Max Gate Weight: 4,000 lbs
• Max Gate Length: 45'
• Motor: Brushless 24 VDC, 25 AMPS
• Gate Speed: 12" per Second
• VAC: 115-Single phase
• Battery Backup System: (2) 7Ah 12VDC Batteries
• W x L x H: 16.5" x 14.5" x 22"
• Includes Photoeye Pair
