Ramset RAM-3100 Automatic Swing Gate Opener

The RAM-3100 from Ramset is one of our strongest swing gate opener, being able to handle a gate up to 1200 lbs and 22 ft, making it the perfect choice for either commercial or industrial applications.
Part Number: RAM-3100
$1,985.92 each
$1,985.92 each
OR


Details

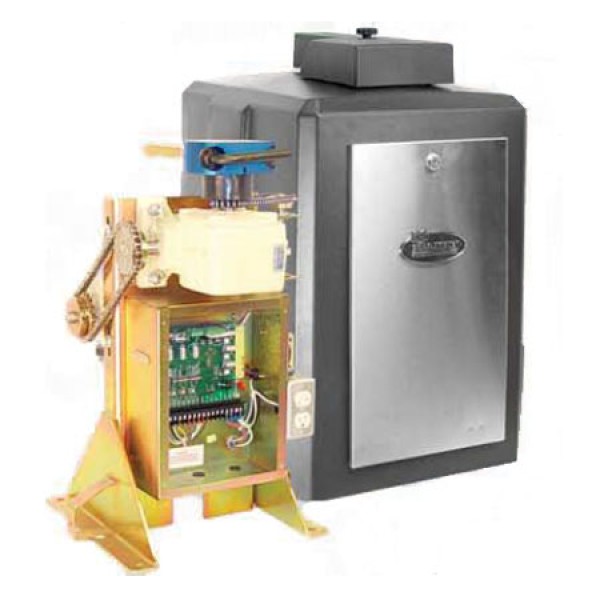

Ramset RAM-3100 Automatic Swing Gate Opener

The RAM-3100 from Ramset is one of our strongest swing gate opener, being able to handle a gate up to 1200 lbs and 22 ft, making it the perfect choice for either commercial or industrial applications. Our RAM-3100 swing gate operator features a durable 3/4 HP continuous duty motor equipped high speed ball bearings & resettable overload button. Also featured in this operator is a unique heavy duty worm gear that is lubricated in an oil bath to allow for smooth and whisper quiet operation. With the RAM 3100 you'll never need to worry about power outages again thanks to the hand release clamp that rests atop of the operator allowing it to easily operate manually during a loss of power. On the side of the operator you'll find an easy access panel, allowing you to make changes to settings on the smart Intelligate control board effortlessly.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

RAM 3100 Specifications

  • Max Gate Length - 22 ft
  • Max Gate Weight - 1200 lbs
  • Gate Travel Speed - 90 degrees in 20 sec
  • Cycles - continuous
  • Application - commercial / industrial
  • Finish / Construction - gold / zinc plated
  • Motor - 3/4 HP, 120 VAC, 8.5 amp, 1625 rpm
  • Operating Temperature - -10 to 160 degrees F
  • Power Failure Release - Hand lever release
  • Overall Dimensions - 28 1/2" H x 23" L x 18" W

Please Note: To Comply With UL325 Standards, An External Entrapment Device Is Required For This Swing Gate Operator To Function. The Safety Reflective Photo Eye w/ Hood Kit (33ft) RAMSET-PHOTO-EYE Is Recommended.

RAM 3100 Instruction Manual

Prefer to Call? (888) 378-1105

Questions about part number RAM-3100?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU RAM-3100
Horsepower 3/4 HP
Maximum Gate Size 22 ft.
Maximum Gate Weight 1200 lbs.
Cycles Per Hour Continuous Duty
Warranty 10 Year Residential, 7 Year Commercial, 3 Year Control Boards
