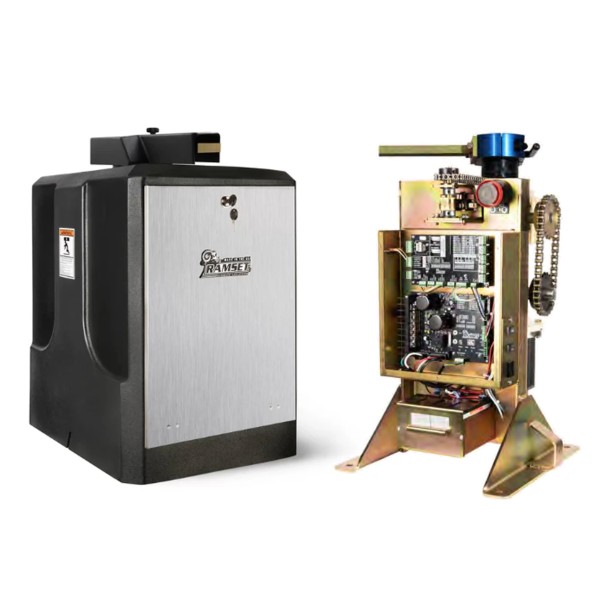

Ramset RAM-3000 Automatic Swing Gate Opener

The RAM-3000 from Ramset is one of the strongest swing gate operators available, making it a perfect choice for commercial and industrial applications. This automatic gate operator is able to handle a gate up to 22 ft or 1000 lbs.
Part Number: RAM-3000
$1,840.34 each
$1,840.34 each


Ramset RAM-3000 Automatic Swing Gate Opener

The Ramset RAM-3000 is one of our strongest swing gate operators, perfect for commercial or industrial applications and able to handle a gate up to 22 ft or 1000 lbs. The RAM 3000 swing gate opener features a 1/2 HP continuous duty motor with high speed ball bearings and a resettable overload button. This operator features a special heavy duty worm gear being constantly lubricated in an oil bath to allow for smooth and incredibly quiet operation. With the RAM-3000 you'll never need to worry about power outages again thanks to the innovative clamp hand release featured atop of the operator allowing it to manually function easily during loss of power. On the side of the operator you'll find an easy access panel, making changing settings on the smart Intelligate control board effortless.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

RAM 3000 Specifications

  • Max Gate Length - 22 ft
  • Max Gate Weight - 1000 lbs
  • Gate Travel Speed - 90 degrees in 20 sec
  • Cycles - continuous
  • Application - commercial / industrial
  • Finish / Construction - gold / zinc plated
  • Motor - 1/2 HP, 120 VAC, 4.5 amp, 1625 rpm
  • Operating Temperature - -10 to 160 degrees F
  • Power Failure Release - Hand lever release
  • Overall Dimensions - 28 1/2" H x 23" L x 18" W

Please Note: To Comply With UL325 Standards, An External Entrapment Device Is Required For This Swing Gate Operator To Function. The Safety Reflective Photo Eye w/ Hood Kit (33ft) RAMSET-PHOTO-EYE Is Recommended.

RAM 3000 Instruction Manual

Name Ramset RAM-3000 Automatic Swing Gate Opener
SKU RAM-3000
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Power Failure Release Hand Lever Release
UL Class I, II, III, IV
Opening Speed 90 Degrees in 20 Seconds
Horsepower 1/2 HP
Application Commercial, Industrial
Maximum Gate Size 22 ft.
Maximum Gate Weight 1000 lbs.
Cycles Per Hour Continuous Duty
Warranty 10 Year Residential, 7 Year Commercial, 3 Year Control Boards
Price $1,840.34
