Ramset RAM-300 ETL AC Swing Gate Operator with Photoeye - 800-97-11

Details

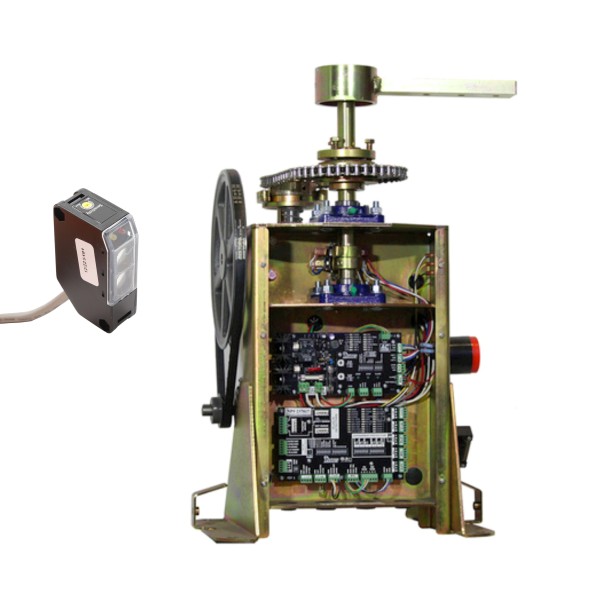

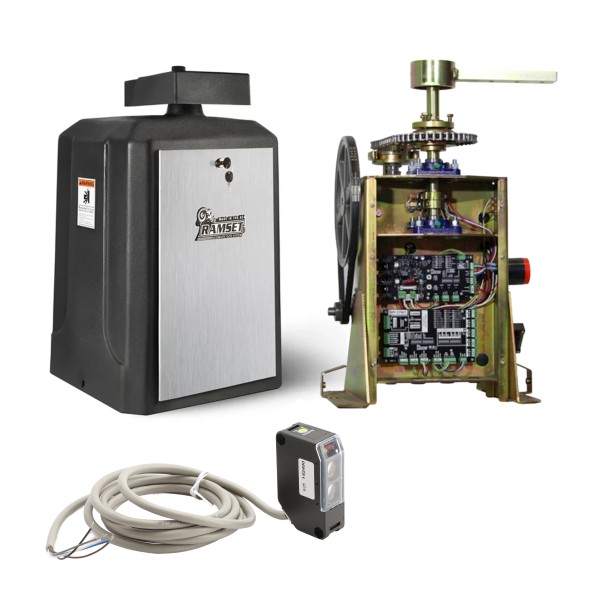

Ramset RAM-300 ETL AC Swing Gate Operator with Photoeye - 800-97-11

The Ramset RAM-300 ETL AC Swing Gate Operator with Photoeye is built for residential and commercial swing gates up to 20 feet long and 800 pounds in weight. It offers a range of features including adjustable closing delay, one-pass control, and smart home compatibility. The included photoeye pair ensures UL325 compliance while enhancing overall safety. With its hand lever release and installer-friendly setup, it is a reliable choice for controlled property access.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Features

• ETL Listed and UL 325 Compliant with required external entrapment protection devices
• Emergency Foot Pedal Release for manual operation during power loss or emergencies
• Easy Installation with EP Learn Mode for quick photoeye setup
• Left/Right Switch for flexible installation direction
• Adjustable Close Delay to suit unique site requirements
• One Pass system for immediate closure after entry
• Smart Home Compatible via relay connection on control board

Specifications

• Class: Residential/ Commercial
• Max Gate Weight: 800 lbs
• Max Gate Length: 20'
• Motor: 1/2 Hp, 115 VAC, 4.5 AMPS
• Cycles: Continuous
• Gate Speed: 12" per Second
• VAC: 115-Single phase
• W x L x H: 20" x 16.5" x 27"
• Includes Photoeye Pair
• Emergency Release: Hand Lever
