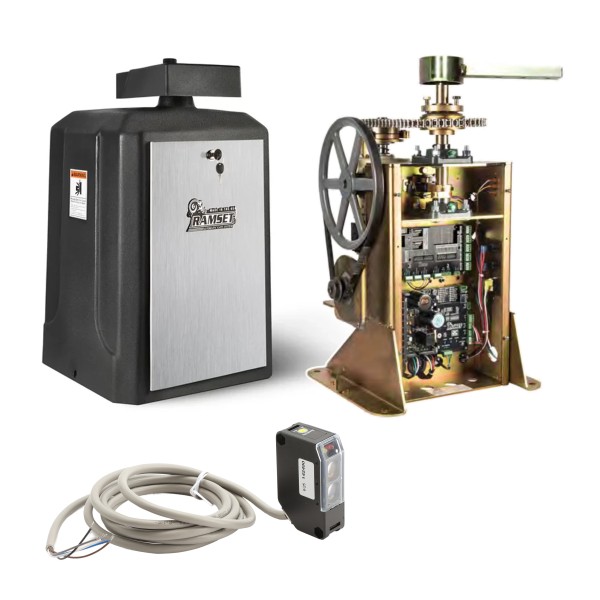

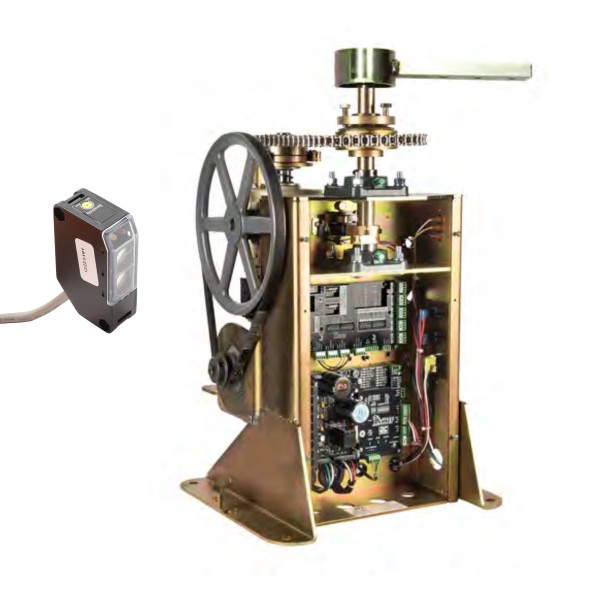

Ramset RAM-300 DC Brushless Swing Gate Operator with Photoeye - 800-99-11
The Ramset RAM-300 DC Brushless Swing Gate Operator with Photoeye is designed for smaller commercial or residential gates that require dependable operation. It supports gates weighing up to 1,200 pounds and measuring 18 feet in length. The included photoeye pair ensures UL325 compliance, while features like EP Learn Mode, left/right switch, and adjustable closing delay make it adaptable for varied sites. With a brushless motor, backup power, and manual release options, this operator combines efficiency with safety.
Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.
Features
- ETL Listed and UL 325 Compliant with required external entrapment protection devices
- Emergency Foot Pedal Release for manual operation during power loss or emergencies
- Easy Installation with EP Learn Mode for quick photoeye setup
- Left/Right Switch for flexible installation direction
- Adjustable Close Delay to suit unique site requirements
- Smart Home Compatible via relay connection on control board
Specifications
- Class: Commercial/ Residential
- Max Gate Weight: 1,200 lbs
- Max Gate Length: 18'
- Motor: Brushless 24 VDC, 13 AMPS
- Gate Speed: 12" per Second
- VAC: 115-Single phase
- Battery Backup System: (2) 7Ah 12VDC Batteries
- W x L x H: 20" x 16.5" x 27"
- Includes Photoeye Pair
| SKU | 800-99-11 |
|---|---|
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Motor | 24VDC Brushless (13 Amps) |
| Power Failure Release | Foot Pedal Release |
| UL Class | I, II, III, IV |
| Opening Speed | 1 Ft. / Second |
| Application | Residential, Commercial |
| Maximum Gate Size | 18 ft. |
| Maximum Gate Weight | 1200 lbs. |
| Cycles Per Hour | Continuous Duty |
| Warranty | 10 Year Residential, 7 Year Commercial, 3 Year Control Boards |
