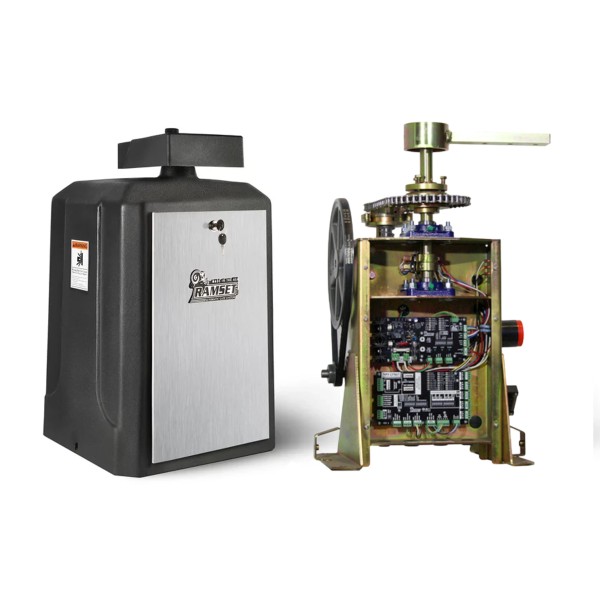

Ramset RAM 300 DC Brushless Automatic Swing Gate Opener (For Gates Up To 18 ft. or 1200 lbs.) - 800-98-11

Ramset RAM 300 DC Brushless Automatic Swing Gate Opener is a residential or commercial gate opener designed for gates up to 18 ft or 1200 lbs and integrated with the Ramset "Intelligate" Control Board.
Part Number: 800-98-11
$2,135.69 each
$2,135.69 each
OR


Details

Ramset RAM 300 DC Brushless Automatic Swing Gate Opener (For Gates Up To 18 ft. or 1200 lbs.) - 800-98-11

The Ramset 300-DC is a high-traffic swing gate operator designed for both residential and commercial use. It incorporates advanced technology and features to ensure reliable performance in settings requiring high security and frequent access. The system is equipped with the Intelligate Control Board, which offers features such as an Electronic Reversing Device (ERD) that reverses the gate's motion when it encounters an obstruction, enhancing safety and efficiency. Additionally, this model is compatible with various accessories and configurations to meet specific installation needs, making it a versatile choice for different gate operation requirements.

Features

  • Application: Residential/Commerical
  • Soft Start, Slow Stop
  • Left or Right Installation
  • One Pass and Delay Closing Options
  • EP Learning
  • Fail Safe/Fail Secure Modes
  • Double Board System
  • Battery Backup System
  • Power Failure Options: Foot Pedal Release
  • Finish: 3/16" Steel, Gold Zinc Plated
  • UL Class: I, II, III, IV
  • Warranty: 10 Year Residential, 7 Year Commercial, 3 Year Control Boards

Specifications

  • Maximum Gate Weight: 1200 lbs.
  • Maximum Gate Length: 18 ft.
  • Opening Speed: 90 Degrees in 14 Seconds
  • Voltage: 110/115/120 AC (60 Hz, 1 Phase)
  • Horsepower: 1/2 HP
  • Cycle Rating: Continuous
  • Motor: 24VDC Brushless (25 amps)
  • Oprating Temperature Range: -10 Degrees F to 160 Degrees F

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.


Please Note: To Comply With UL325 Standards, An External Entrapment Device Is Required For This Swing Gate Operator To Function. The Safety Reflective Photo Eye w/ Hood Kit (33ft) RAMSET-PHOTO-EYE Is Recommended.

Specifications

Prefer to Call? (888) 378-1105

Questions about part number 800-98-11?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 800-98-11
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Motor 24VDC Brushless (25 amps)
Power Failure Release Foot Pedal Release
UL Class I, II, III, IV
Opening Speed 90 Degrees in 14 Seconds
Horsepower 1/2 HP
Application Residential, Commercial
Maximum Gate Size 18 ft.
Maximum Gate Weight 1200 lbs.
Cycles Per Hour Continuous Duty
Warranty 10 Year Residential, 7 Year Commercial, 3 Year Control Boards
