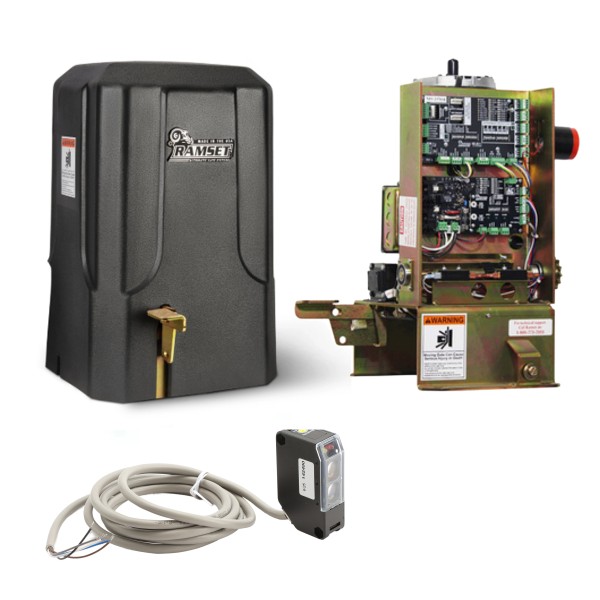

Ramset RAM-101 DC Brushless Residential Slide Gate Operator with Photoeyes - 800-99-01

Details

Ramset RAM-101 DC Brushless Residential Slide Gate Operator with Photoeyes - 800-99-01

The Ramset RAM-101 DC Brushless Residential Slide Gate Operator with Photoeyes provides efficient automation for residential gates up to 1,800 pounds and 35 feet. Its brushless 24VDC motor offers long service life with features like soft start and slow stop for controlled movement. The included photoeyes make UL325 compliance simple, while fail-safe or fail-secure operation ensures flexibility during outages. With built-in battery backup and an emergency foot pedal release, it is designed to keep gates functional even in critical conditions.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Features

• Slow Stop & Soft Start for smooth, quiet gate operation
• Battery Backup System keeps gates operational during power outages
• Emergency Foot Pedal Release for manual gate access in emergencies
• Easy Installation with EP Learn Mode for quick photoeye setup
• Left/Right Switch for flexible installation direction
• Adjustable Close Delay to fit unique site requirements
• Fail Safe/Secure mode allows gate to default open or closed if power remains unavailable

Specifications

• Class: Residential/ Commercial
• Max Gate Weight: 1,800 lbs
• Max Gate Length: 35'
• Motor: Brushless 24 VDC, 13 AMPS
• Gate Speed: 12" per Second
• VAC: 115-Single phase
• Battery Backup System: (2) 7Ah 12VDC Batteries
• W x L x H: 15" X 14.5" X 22"
• Includes Photoeye Pair
