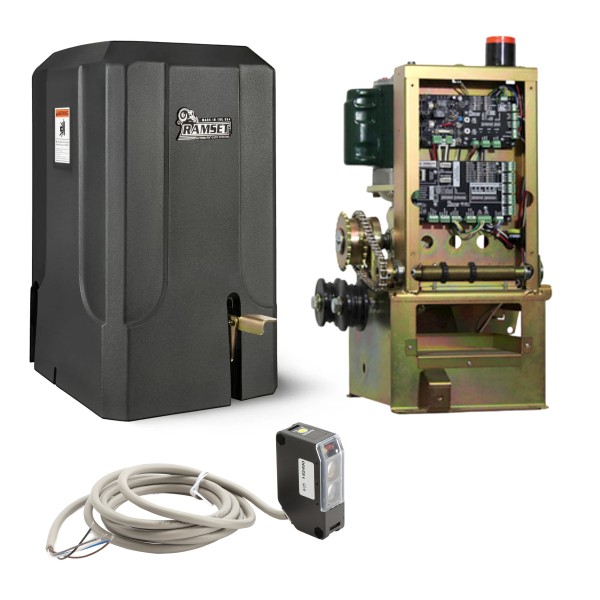

Ramset RAM-1000 AC Heavy-Duty Slide Gate Operator with Photoeyes - 800-97-03

Details

Ramset RAM-1000 AC Heavy-Duty Slide Gate Operator with Photoeyes - 800-97-03

The Ramset RAM-1000 AC Heavy-Duty Slide Gate Operator with Photoeyes is designed for large gates in industrial and commercial environments. Supporting up to 1,500 pounds and 45 feet in length, it ensures strong performance under demanding conditions. The included photoeyes make UL325 compliance straightforward, while features like EP Learn Mode and adjustable close delay simplify installation. With an emergency foot pedal release and smart relay connections, it offers both safety and convenience for high-traffic entryways.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Features

• ETL Listed and UL 325 Compliant with required external entrapment protection devices
• Emergency Foot Pedal Release for manual operation during power loss or emergencies
• Easy Installation with EP Learn Mode for quick photoeye setup
• Left/Right Switch for flexible installation direction
• Adjustable Close Delay to suit unique site requirements
• One Pass system for immediate closure after entry
• Smart Home Compatible via relay connection on control board

Specifications

• Class: Industrial/ Commercial
• Max Gate Weight: 1,500 lbs
• Max Gate Length: 45'
• Motor: 1/2 Hp, 115 VAC, 4.5 AMPS
• Cycles: Continuous
• Gate Speed: 12" per Second
• VAC: 115-Single phase
• W x L x H: 16.5" X 14.5" X 22"
• Emergency Release: Foot Pedal
