Ramset RAM-100 DC Brushless Slide Gate Operator with Photoeyes - 800-99-02
Details

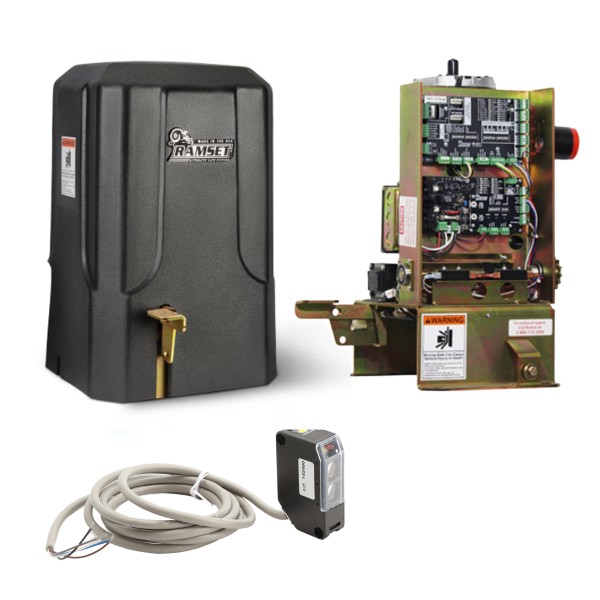

Ramset RAM-100 DC Brushless Slide Gate Operator with Photoeyes - 800-99-02
The Ramset RAM-100 DC Brushless Slide Gate Operator with Photoeyes is a versatile unit for residential and light commercial gates. With a 1,800-pound, 35-foot capacity, it features a brushless 24VDC motor for dependable performance. UL325 compliance is built in through the included photoeye pair, enhancing overall safety. Additional functions like adjustable close delay, EP Learn Mode, and battery backup provide convenience while ensuring uninterrupted access control.
Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.
Features
- Slow Stop & Soft Start for smooth, quiet gate operation
- Battery Backup System keeps gates operational during power outages
- Emergency Foot Pedal Release for manual gate access in emergencies
- Easy Installation with EP Learn Mode for quick photoeye setup
- Left/Right Switch for flexible installation direction
- Adjustable Close Delay to fit unique site requirements
- Fail Safe/Secure mode allows gate to default open or closed if power remains unavailable
Specifications
- Class: Residential/ Commercial
- Max Gate Weight: 1,800 lbs
- Max Gate Length: 35'
- Motor: Brushless 24 VDC, 13 AMPS
- Gate Speed: 12" per Second
- VAC: 115-Single phase
- Battery Backup System: (2) 7Ah 12VDC Batteries
- W x L x H: 15" X 14.5" X 22"
- Includes Photoeye Pair
| SKU | 800-99-02 |
|---|---|
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Motor | 24VDC Brushless (13 Amps) |
| Power Failure Release | Foot Pedal Release |
| UL Class | I, II, III, IV |
| Opening Speed | 1 Ft. / Second |
| Application | Residential, Commercial |
| Maximum Gate Size | 35 ft. |
| Maximum Gate Weight | 1800 lbs. |
| Cycles Per Hour | Continuous Duty |
| Warranty | 10 Year Residential, 7 Year Commercial, 3 Year Control Boards |
