Details

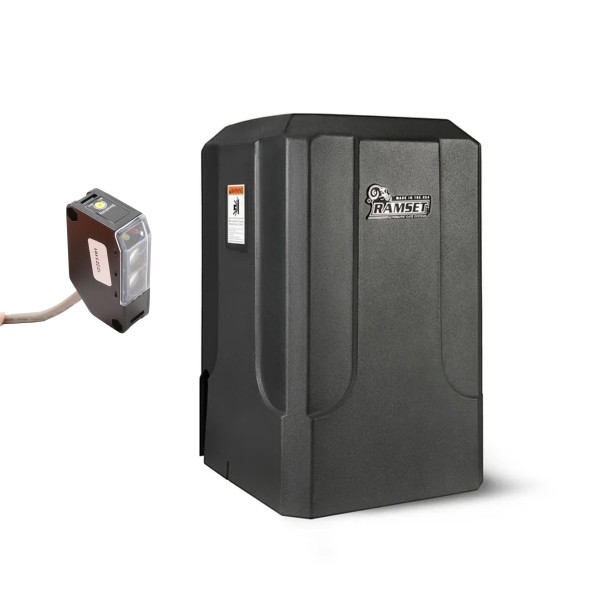

Ramset 5700 DC Slide Gate Opener with Photo Eye (UL Rated, 5000 lbs, 60 ft) - 800-99-05

The Ramset RAM-5700 DC Brushless Industrial Slide Gate Operator with Photo eyes is engineered for the heaviest sliding gates in industrial applications. Rated for 5,000 pounds and 60 feet, it uses a brushless 24VDC motor with dual-voltage capability to maximize adaptability. UL325 compliance is achieved through the included photo eyes, while added features such as fail-safe or fail-secure settings, adjustable closing delay, and EP Learn Mode improve operation. With a foot pedal emergency release and backup power, this operator provides uninterrupted control even during electrical outages.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Features

• Slow Stop & Soft Start for smooth, quiet gate operation
• Battery Backup System keeps gates operational during power outages
• Emergency Foot Pedal Release for manual gate access in emergencies
• Easy Installation with EP Learn Mode for quick photoeye setup
• Left/Right Switch for flexible installation direction
• Adjustable Close Delay to fit unique site requirements
• Fail Safe/Secure mode allows gate to default open or closed if power remains unavailable

Specifications

• Class: Commercial/ Industrial
• Max Gate Weight: 5,000 lbs
• Max Gate Length: 60'
• Motor: Brushless 24 VDC, 25 AMPS
• Gate Speed: 12" per Second
• VAC: 115-Single phase/ 230 VAC
• Battery Backup System: (2) 7Ah 12VDC Batteries
• W x L x H: 18.5" x 16.5" x 27"
• Includes 2 Pairs of Photo Eyes
