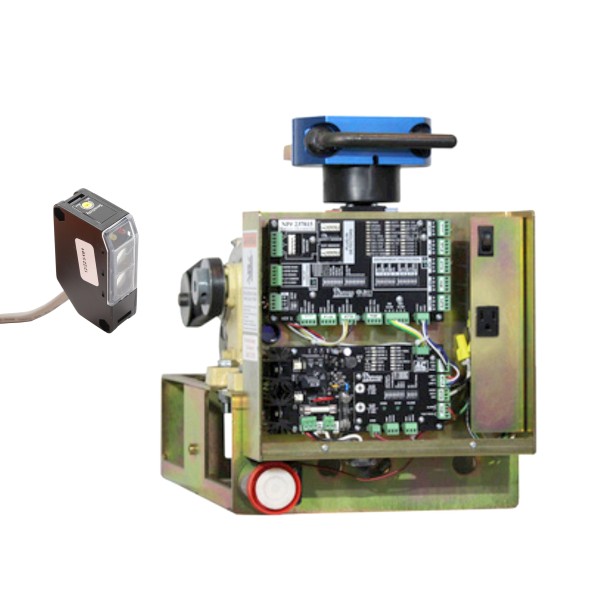

Ramset 302 AC Swing Gate Opener with Photo Eye (UL Rated, 800 lbs, 20 ft) - 800-97-12

The Ramset RAM-302 ETL AC Swing Gate Operator with Photoeye is suited for residential and commercial swing gates requiring added safety. Supporting gates up to 800 pounds and 20 feet, it includes UL325-compliant photoeyes as part of the package. Features include EP Learn Mode, one-pass system, and adjustable close delay for site-specific needs. A hand lever emergency release ensures quick manual access during outages, making this operator both practical and safety-focused.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Features

• ETL Listed and UL 325 Compliant with required external entrapment protection devices
• Emergency Foot Pedal Release for manual operation during power loss or emergencies
• Easy Installation with EP Learn Mode for quick photoeye setup
• Left/Right Switch for flexible installation direction
• Adjustable Close Delay to suit unique site requirements
• One Pass system for immediate closure after entry
• Smart Home Compatible via relay connection on control board

Specifications

• Class: Residential/ Commercial
• Max Gate Weight: 800 lbs
• Max Gate Length: 20'
• Motor: 1/2 Hp, 115 VAC, 4.5 AMPS
• Cycles: Continuous
• Gate Speed: 12" per Second
• VAC: 115-Single phase
• W x L x H: 13.5" x 23" x 16.5"
• Includes Photoeye Pair
• Emergency Release: Hand Lever
