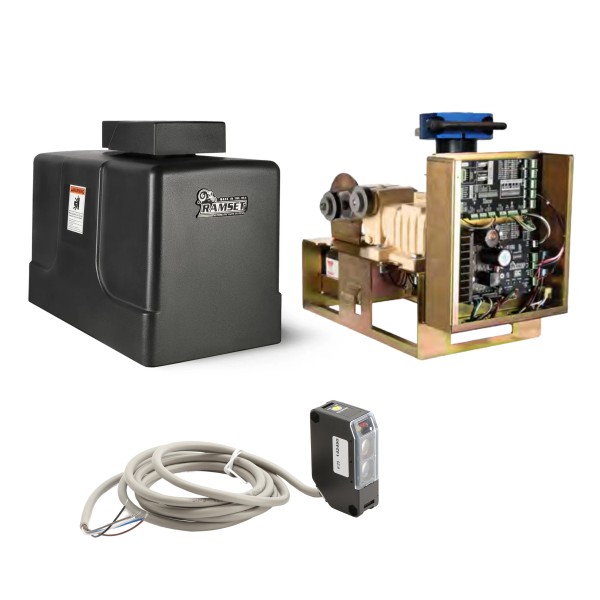

Ramset 302 DC Swing Gate Opener with Photo Eye (UL Rated, 1200 lbs, 18 ft) - 800-99-12

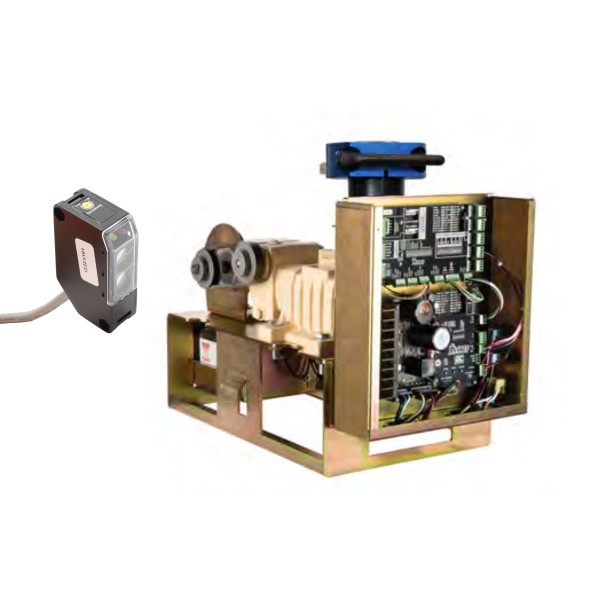

The Ramset RAM-302 DC Brushless Swing Gate Operator with Photoeye provides reliable control for swing gates in residential and commercial settings. Handling gates up to 1,200 pounds and 18 feet, it comes standard with photoeyes for UL 325 safety compliance. Installer-friendly features such as EP Learn Mode, adjustable closing delay, and smart relay connections simplify setup and integration. With a brushless 24VDC motor, battery backup, and manual release capability, it ensures uninterrupted performance even during power outages.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Features

• ETL Listed and UL 325 Compliant with required external entrapment protection devices
• Emergency Foot Pedal Release for manual operation during power loss or emergencies
• Easy Installation with EP Learn Mode for quick photoeye setup
• Left/Right Switch for flexible installation direction
• Adjustable Close Delay to suit unique site requirements
• Smart Home Compatible via relay connection on control board

Specifications

• Class: Residential/ Commercial
• Max Gate Weight: 1,200 lbs
• Max Gate Length: 18'
• Motor: Brushless 24 VDC, 13 AMPS
• Gate Speed: 12" per Second
• VAC: 115-Single phase
• Battery Backup System: (2) 7Ah 12VDC Batteries
• W x L x H: 13.5" x 23" x 16.5"
• Includes a Pair of Photo Eyes
