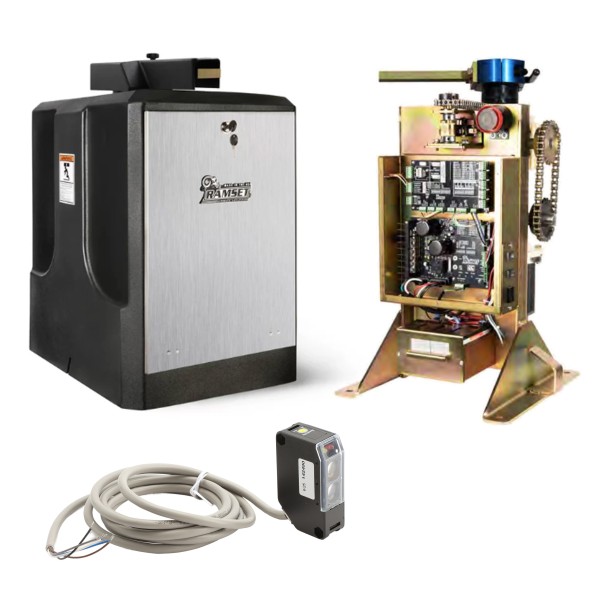

Ramset RAM-3000 ETL AC Swing Gate Operator with Photoeye - 800-97-13

Details

Ramset RAM-3000 ETL AC Swing Gate Operator with Photoeye - 800-97-13

The Ramset RAM-3000 ETL AC Swing Gate Operator with Photoeye is engineered for large gates where advanced features are required. It comes with built-in functions like secure close, anti-tailgating, pre-warning alarms, and dual-gate communication capability. A photoeye pair is included, ensuring UL325 compliance and reliable safety performance. With an optional battery backup, corrosion-resistant housing, and installer-friendly adjustments, this operator is a strong choice for commercial and industrial swing gates.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Features

• Automatic close timer
• Pre-warning alarm relays
• Manual or self adjusting ERD
• Dual gate communication capability
• Secure close
• Anti-tailgating/One pass system
• Radio cycle (open, stop & close)
• Open & close delays
• Indicator lights for easy troubleshooting
• Plug in loop detectors
• Left/Right installation switch
• Optional Battery Backup System

Specifications

• Electric Motor: 1/2 Hp, 115VAC, 4.5 amp, 50/60Hz, continuous duty with high speed ball bearings and resettable overload button
• Heavy Duty Worm Gear: Lubricated in an oil bath for smooth and quiet operation
• Limit Switches: Mechanical adjustments for accurate gate stop settings
• Finish: Gold/Zinc plated to inhibit corrosion
• Cover: High-impact resistant charcoal gray polyethylene with a stainless steel access door
• Cover Dimensions: 28-1/2" H x 23" L x 18" W
