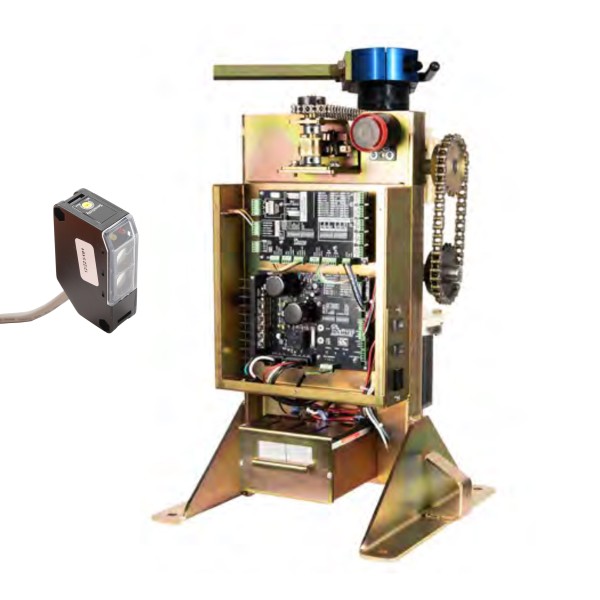

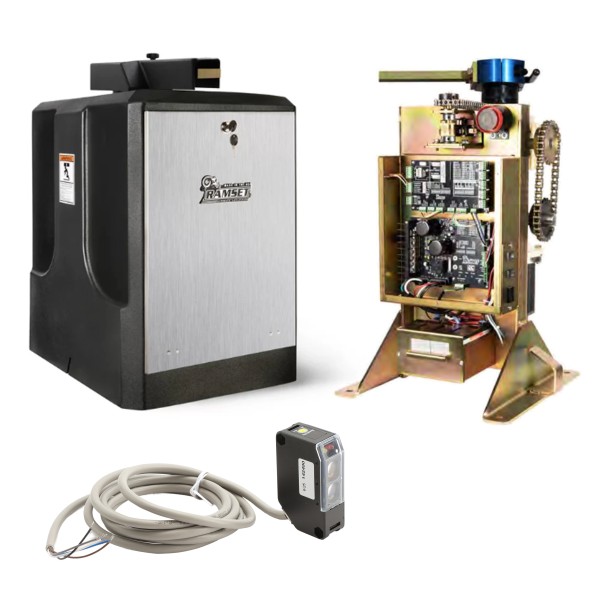

Ramset RAM-3000 DC Brushless Swing Gate Operator with Photoeye - 800-99-13
The Ramset RAM-3000 DC Brushless Swing Gate Operator with Photoeye is designed for heavier-duty gates in commercial and industrial locations. With a 2,000-pound, 22-foot capacity, it provides strong, efficient performance through a 24VDC brushless motor. Included photoeyes ensure UL325 compliance, while features such as EP Learn Mode, left/right switch, and adjustable delay give installers flexibility. With battery backup and emergency foot pedal release, this operator supports reliable access control in demanding conditions.
Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.
Features
- ETL Listed and UL 325 Compliant with required external entrapment protection devices
- Emergency Foot Pedal Release for manual operation during power loss or emergencies
- Easy Installation with EP Learn Mode for quick photoeye setup
- Left/Right Switch for flexible installation direction
- Adjustable Close Delay to suit unique site requirements
- Smart Home Compatible via relay connection on control board
Specifications
- Class: Commercial/ Industrial
- Max Gate Weight: 2,000 lbs
- Max Gate Length: 22'
- Motor: Brushless 24 VDC, 25 AMPS
- Gate Speed: 12" per Second
- VAC: 115-Single phase
- Battery Backup System: (2) 7Ah 12VDC Batteries
- W x L x H: 18" x 23" x 28.5"
- Includes Photoeye Pair
| SKU | 800-99-13 |
|---|---|
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Motor | 24VDC Brushless (25 Amps) |
| Power Failure Release | Foot Pedal Release |
| UL Class | I, II, III, IV |
| Opening Speed | 1 Ft. / Second |
| Application | Commercial, Industrial |
| Maximum Gate Size | 22 ft. |
| Maximum Gate Weight | 2000 lbs. |
| Cycles Per Hour | Continuous Duty |
| Warranty | 10 Year Residential, 7 Year Commercial, 3 Year Control Boards |
