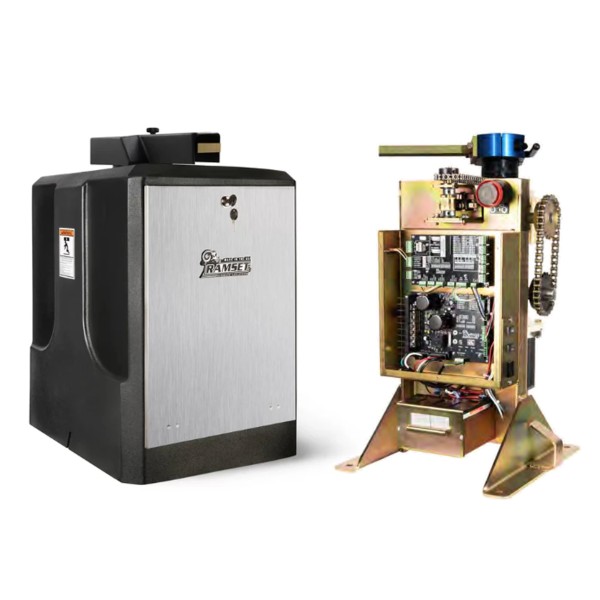

Ramset RAM 3000 DC Brushless Industrial Automatic Swing Gate Opener (For Gates Up To 22 ft. or 2000 lbs.) - 800-98-13

Ramset RAM 3000 DC Brushless Industrial Automatic Swing Gate Opener is a commercial or industrial gate opener designed for gates up to 22 ft or 2000 lbs and integrated with the Ramset "Intelligate" Control Board.
Part Number: 800-98-13

$2,354.78 each
OR


Details

Ramset RAM 3000 DC Brushless Industrial Automatic Swing Gate Opener (For Gates Up To 22 ft. or 2000 lbs.) - 800-98-13

The Ramset 3000-DC is a high-traffic swing gate operator that's engineered for both commercial and industrial applications. It's known for providing top-tier security and performance. This robust gate operator features a heavy-duty worm gear that is lubricated for quiet operation, and it comes equipped with limit switches for precise gate stop settings. Its construction is designed for durability, with a corrosion-resistant finish and a cover made from high-impact, charcoal-resistant polyethylene. The Intelligate Control Board, which controls this device, is among the most advanced in the industry, ensuring reliability and a multitude of features. The gate operator can handle gates up to 22 feet long and weighing up to 1200 lbs, operating continuously without overheating, thanks to its robust motor.

Features

  • Application: Commerical/Industrial
  • Soft Start, Slow Stop
  • Left or Right Installation
  • One Pass and Delay Closing Options
  • EP Learning
  • Fail Safe/Fail Secure Modes
  • Double Board System
  • Battery Backup System
  • Power Failure Options: Hand Lever Release and Optional Battery Backup
  • Finish: 1/4" Steel, Gold Zinc Plated
  • UL Class: I, II, III, IV
  • Warranty: 10 Year Residential, 7 Year Commercial, 3 Year Control Boards

Specifications

  • Maximum Gate Weight: 2000 lbs.
  • Maximum Gate Length: 22 ft.
  • Opening Speed: 90 Degrees in 20 Seconds
  • Voltage: 110/115/120 AC (60 Hz, 1 Phase)
  • Horsepower: 1/2 HP
  • Cycle Rating: Continuous
  • Motor: 24VDC Brushless (25 amps)
  • Oprating Temperature Range: -10 Degrees F to 160 Degrees F

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.


Please Note: To Comply With UL325 Standards, An External Entrapment Device Is Required For This Swing Gate Operator To Function. The Safety Reflective Photo Eye w/ Hood Kit (33ft) RAMSET-PHOTO-EYE Is Recommended.

Specifications

Name Ramset RAM 3000 DC Brushless Industrial Automatic Swing Gate Opener (For Gates Up To 22 ft. or 2000 lbs.) - 800-98-13
SKU 800-98-13
Input Voltage 110/115/120 AC (60 Hz, 1 Phase)
Motor 24VDC Brushless (25 amps)
Power Failure Release Hand Lever Release, Optional Battery Backup
UL Class I, II, III, IV
Opening Speed 90 Degrees in 20 Seconds
Horsepower 1/2 HP
Application Commercial, Industrial
Maximum Gate Size 22 ft.
Maximum Gate Weight 2000 lbs.
Cycles Per Hour Continuous Duty
Warranty 10 Year Residential, 7 Year Commercial, 3 Year Control Boards
Price $2,354.78
