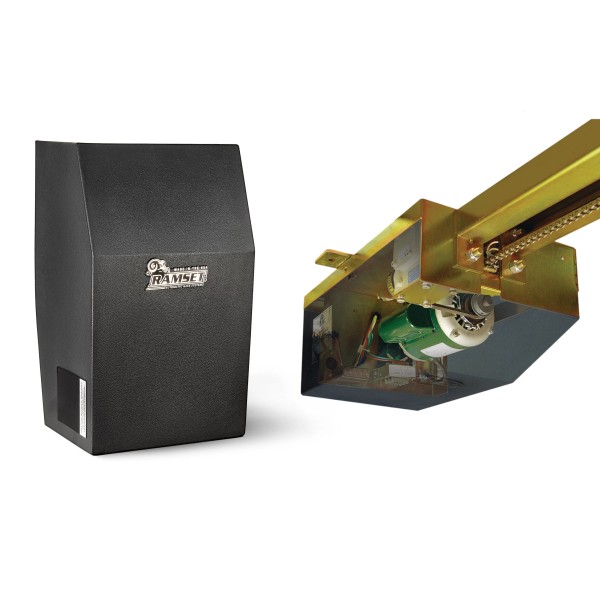

Ramset RAM 2000 Commercial Overhead Automatic Gate Opener

Our RAM 2000 industrial overhead gate operator is equipped with a 1/2 horsepower, 220 VAC, 4.5 amp 50/60 Hz, continuous duty motor, and high speed ball bearings and resettable overload button.
Part Number: RAM-2000

$1,287.94 each
OR

Details

Ramset RAM 2000 Commercial Overhead Automatic Gate Opener

Our RAM 2000 overhead gate operator is equipped with a 1/2 horsepower, 220 VAC, 4.5 amp 50/60 Hz, continuous duty motor, and high speed ball bearings and resettable overload button. The RAM-2000 is built to handle gates up to 20 ft and 450 lbs. This overhead gate opener also features a heavy duty worm gear that is constantly bathed in oil for a smooth and whisper quiet operation. The RAM 2000 has a gold/zinc plated finish to inhibit corrosion as well as a high-impact resistant charcoal gray polyethylene cover to help keep it protected. The system includes a battery backup in case of power outages and will open the gate automatically when power fails completely. It also comes with an emergency release for easy manual opening and closing of the gate during power outages and emergencies.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

RAM 2000 Specifications

  • Max Gate Length - 20 ft
  • Max Gate Weight - 450 lbs
  • Cycles - continuous
  • Capacitor - Aerovox 65µƒ, 240V, 50/60Hz. Protected S 1000AFC
  • Application - commercial / industrial
  • Finish / Construction - 10 ga gold / zinc plated
  • Motor - 1/2 HP, 220 VAC, 4.5 amp, 1625 rpm, 50/60Hz
  • Operating Temperature - -10 to 160 degrees F
  • Gate Travel Speed - 90 degree opening in 14 seconds
  • Power Failure Release - Pull down release
  • Chassis Base Dimensions - 17" W x 22 1/8" L
  • Overall Dimensions - 10" H x 143" L x 13" W

RAM 2000 Instruction Manual

Name Ramset RAM 2000 Commercial Overhead Automatic Gate Opener
SKU RAM-2000
Input Voltage 220/230/240 AC (60 Hz, 1 Phase)
Power Failure Release Optional Battery Backup, Pull Down Release
UL Class II, III, IV
Opening Speed 90 Degrees in 14 Seconds
Horsepower 1/2 HP
Application Commercial
Maximum Gate Size 20 ft.
Maximum Gate Weight 450 lbs.
Cycles Per Hour Continuous Duty
Warranty 10 Year Residential, 7 Year Commercial, 3 Year Control Boards
Price $1,287.94
