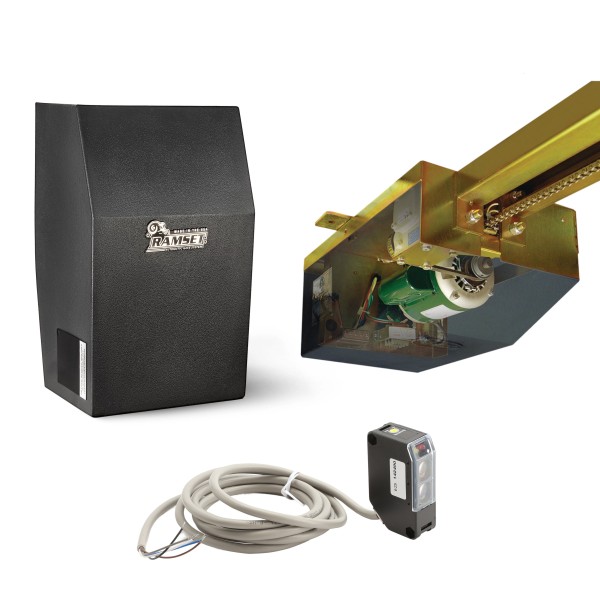

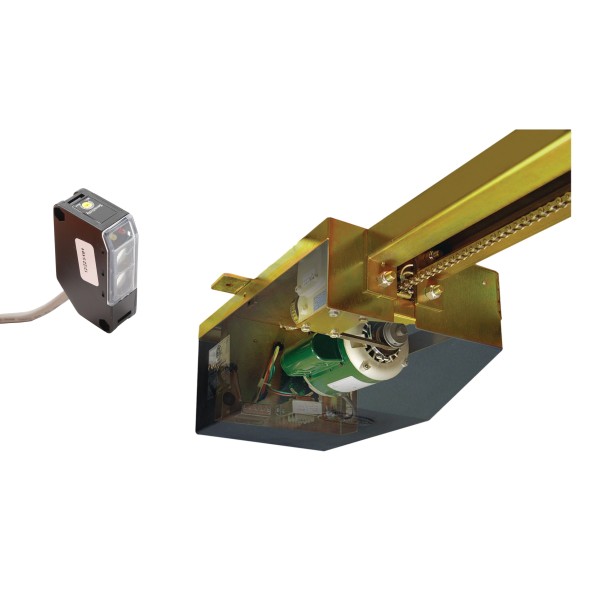

Ramset 2000 DC Overhead Gate Opener with Photo Eye (UL Rated, 800 lbs, 25 ft) - 800-99-18

The Ramset RAM-2000 DC Brushless Commercial Overhead Gate Operator with Photoeye is engineered for overhead-style gates in commercial and light industrial settings. Handling up to 800 pounds and 25 feet in length, it offers smooth operation through a 24VDC brushless motor. The package includes photoeyes for UL325 compliance along with features such as EP Learn Mode, adjustable closing delay, and one-pass closure. With a built-in battery backup system and emergency trolley release, this operator combines safety and convenience for overhead gate automation.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Features

• ETL Listed and UL 325 Compliant with required external entrapment protection devices
• Emergency Foot Pedal Release for manual operation during power loss or emergencies
• Easy Installation with EP Learn Mode for quick photoeye setup
• Left/Right Switch for flexible installation direction
• Adjustable Close Delay to suit unique site requirements
• One Pass system for immediate closure after entry
• Smart Home Compatible via relay connection on control board

Specifications

• Class: Commercial/ Industrial
• Max Gate Weight: 800 lbs
• Max Gate Length: 25'
• Motor: Brushless 24 VDC, 13 AMPS
• Gate Speed: 12" per Second
• VAC: 115-Single phase
• Battery Backup System: (2) 7Ah 12VDC Batteries
• W x L x H: 13" x 143" x 10"
• Includes Photoeye Pair
