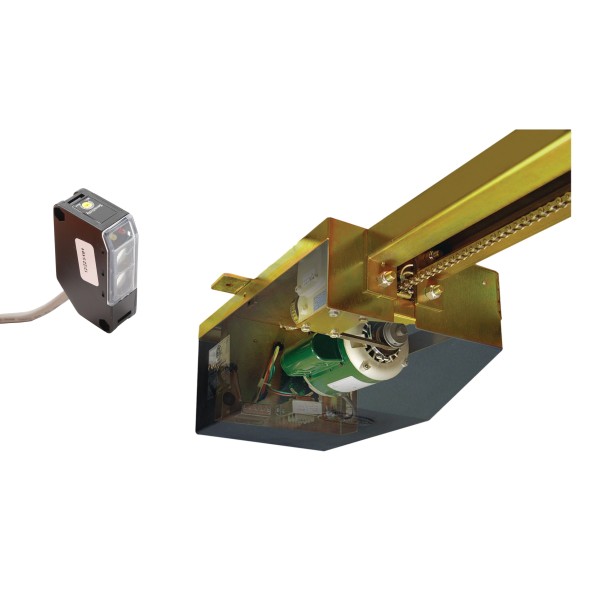

Ramset RAM-2000 AC Commercial Overhead Gate Operator with Photoeye - 800-97-18
Details
Ramset RAM-2000 AC Commercial Overhead Gate Operator with Photoeye - 800-97-18
The Ramset RAM-2000 AC Commercial Overhead Gate Operator with Photoeye delivers efficient automation for lighter-weight overhead gates in commercial and industrial spaces. Supporting gates up to 350 pounds and 25 feet, it comes packaged with photoeyes to meet UL325 requirements. Features include EP Learn Mode, one-pass closure, smart relay compatibility, and adjustable close delay. With an emergency trolley release and integrated battery backup, this operator ensures both safety and convenience for critical entry points.
Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.
Features
- ETL Listed and UL 325 Compliant with required external entrapment protection devices
- Emergency Foot Pedal Release for manual operation during power loss or emergencies
- Easy Installation with EP Learn Mode for quick photoeye setup
- Left/Right Switch for flexible installation direction
- Adjustable Close Delay to suit unique site requirements
- One Pass system for immediate closure after entry
- Smart Home Compatible via relay connection on control board
Specifications
- Class: Commercial/ Industrial
- Max Gate Weight: 350 lbs
- Max Gate Length: 25'
- Motor: 1/2 Hp, 115 VAC, 4.5 AMPS
- Gate Speed: 12" per Second
- VAC: 115-Single phase
- Battery Backup System: (2) 7Ah 12VDC Batteries
- W x L x H: 13" X 143" X 10"
- Includes Photoeye Pair
- Emergency Release: Trolley Release
| SKU | 800-97-18 |
|---|---|
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase) |
| Power Failure Release | Foot Pedal Release |
| UL Class | I, II, III, IV |
| Opening Speed | 1 Ft. / Second |
| Horsepower | 1/2 HP |
| Application | Commercial, Industrial |
| Maximum Gate Size | 25 ft. |
| Maximum Gate Weight | 350 lbs. |
| Cycles Per Hour | Continuous Duty |
| Warranty | 10 Year Residential, 7 Year Commercial, 3 Year Control Boards |
