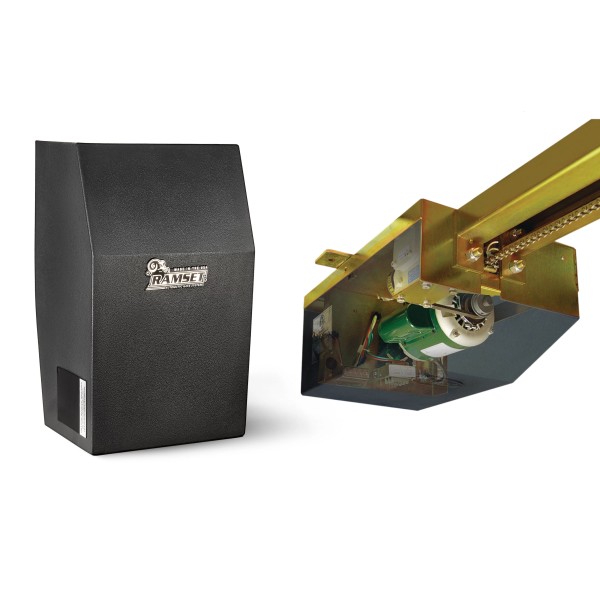

Ramset RAM 2000 DC Brushless Industrial Overhead Door Opener (For Doors Up To 25 ft. or 800 lbs.) - 800-98-18

The Ramset RAM 2000 High Traffic Overhead Gate Operator is designed for commercial or industrial overhead doors and gates. It delivers dependable access control and high performance in high traffic applications. This gate opener includes the Ramset "Intelligate" Control Board, a pull-down release, mechanical limit switch adjustments, and an optional battery backup system/inverter. The Intelligate Control Board stands out as the industry's most sophisticated gate controller, placing Ramset at the forefront in terms of reliability and feature set.

Features

• Application: Commerical/Industrial
• Heavy Duty Worm Gear
• Mechanical Limit Switches
• Power Failure Options: Pull Down Release and Optional Battery Backup
• Finish: Gold Zinc Plated
• UL Class: II, III, IV

Specifications

• Maximum Gate Weight: 800 lbs.
• Maximum Gate Length: 25 ft.
• Opening Speed: 90 Degrees in 14 Seconds
• Voltage: 110/115/120 AC (60 Hz, 1 Phase)
• Horsepower: 1/2 HP
• Continuous
• Motor: 24VDC Brushless (13 amps)
• Oprating Temperature Range: -10 Degrees F to 160 Degrees F

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.
