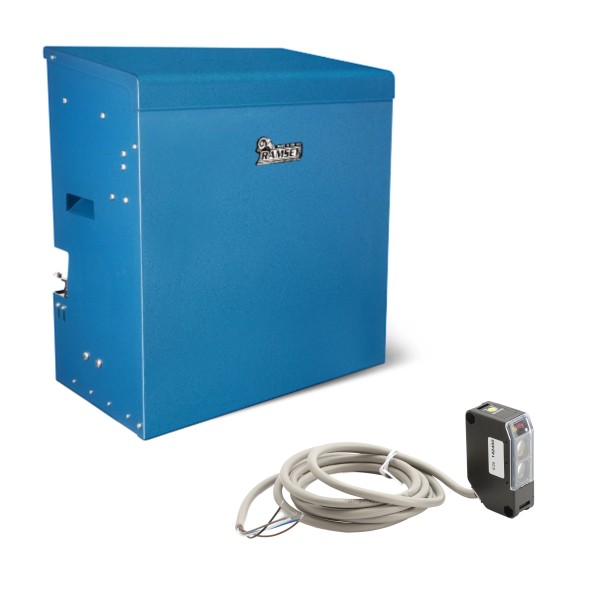

Ramset All Secure DC Rail Drive Slide Gate Operator with Photoeyes - 800-99-09

Details

Ramset All Secure DC Rail Drive Slide Gate Operator with Photoeyes - 800-99-09

The Ramset All Secure DC Rail Drive Slide Gate Operator with Photoeyes is engineered for the heaviest sliding gates, handling up to 8,000 pounds with no length limitation. It uses a brushless 24VDC motor and includes battery backup to keep gates operational during power outages. Features include fail-safe or fail-secure settings, slow start/stop motion, and the ability to connect up to eleven accessories for maximum flexibility. With photoeyes included for UL325 compliance, this operator delivers powerful performance and advanced safety for large commercial and industrial sites.

Warning: Do Not Install This Gate Operator System Unless You Are a Trained, Experienced Gate Technician.

Features

• ETL Listed and UL 325 Compliant - requires external entrapment protection devices as recommended by your installer
• Battery Backup System - keeps gates operational during power outages
• Fail Safe/Fail Secure - choose default open or closed position if power remains unavailable
• Slow Start/Soft Stop - smooth operation without abrupt stops or harsh starts
• Emergency Foot Pedal Release - manual gate access during emergencies
• Left/Right Switch - simple installation direction adjustment
• One Pass Mode - gate closes immediately after entry
• Adjustable Close Delay - customizable self-closing timer
• EP Learn Mode - simplifies photoeye setup with distance memorization
• Smart Home Compatible - relay connection for integration with external devices
• Multiple Accessory Support - connect up to 11 external devices

Specifications

• Class: Commercial/ Industrial
• Max Gate Weight: 8,000 lbs
• Max Gate Length: Infinite
• Motor: Brushless 24 VDC, 25 AMPS
• Gate Speed: 12" per Second
• VAC: 115-Single phase/ 230 VAC
• Battery Backup System: (2) 7Ah 12VDC Batteries
• W x L x H: 17.5" x 23.5" x 27.5"
• Includes Photoeye Pair
